Mag-03三軸磁通門磁力儀

提供多種封裝版本。±12V供電，三分量模擬電壓輸出，在0至±10V范圍內與Bx, By 和 Bz成比例。
廣泛應用于物理、生物電磁、地球物理勘查和國防等領域。
Bartington可提供系列電源和數據采集單元。

產品特征：

多種選擇的封裝類型：圓柱形、方形截面、無封裝、兩部分
噪聲低至 <6pTrms/√Hz at 1Hz
量程從 ±70μT 到 ±1000μT
帶寬典型為 3kHz

應用領域：

測量地磁擾動
作主為動磁屏蔽系統的反饋探頭
核磁共振和電鏡安裝現場的前期環境調查
電磁調查
航磁調查
磁信標測量

磁通門傳感器標定

磁場測量系統搭建

多傳感器系統配套

磁通門傳感器銷售、操作培訓、技術咨詢、維修

彩頁下載

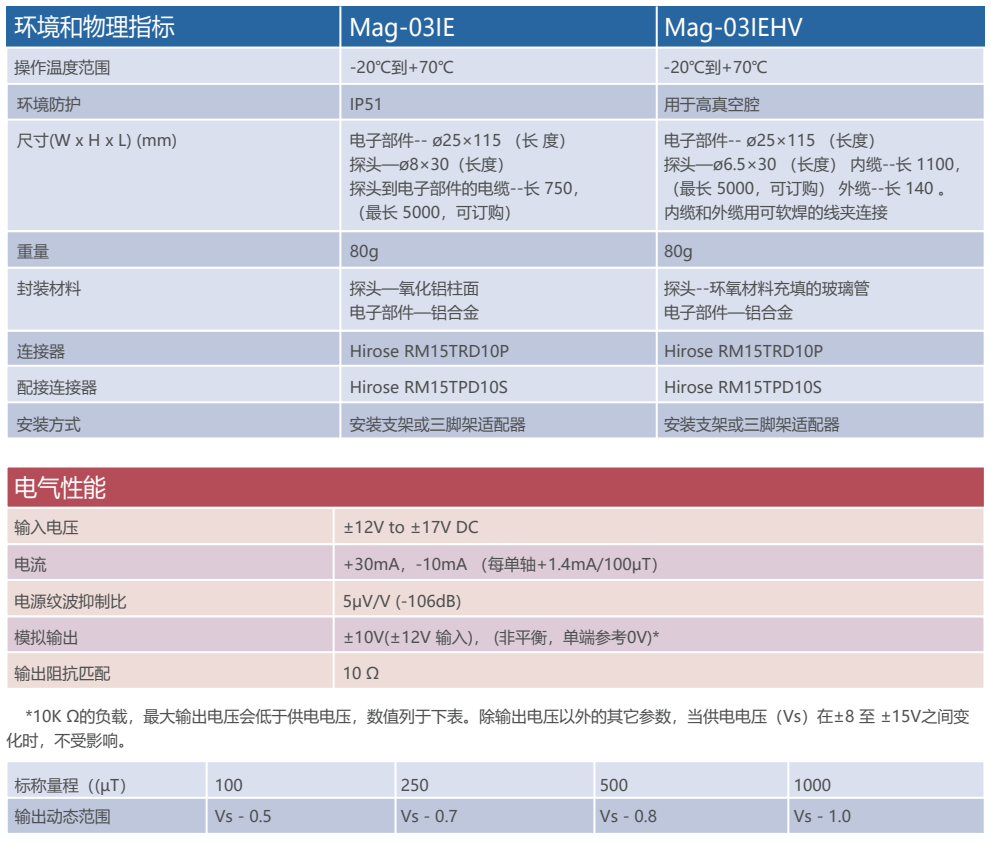

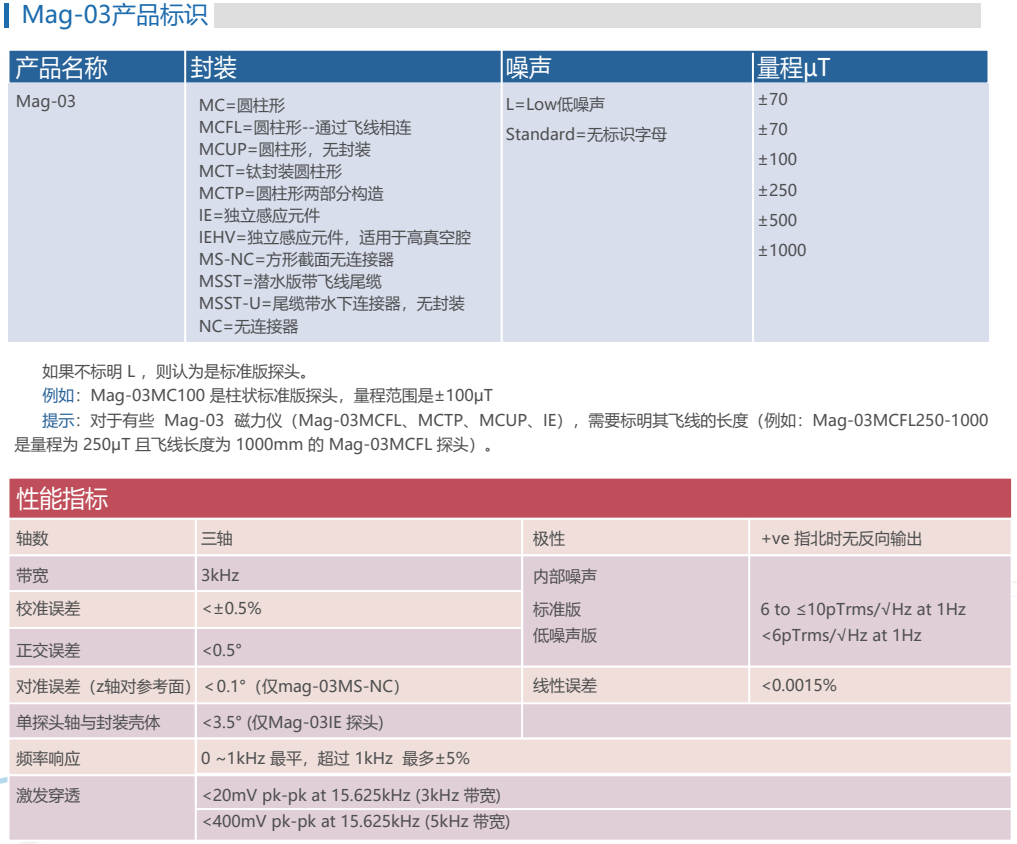

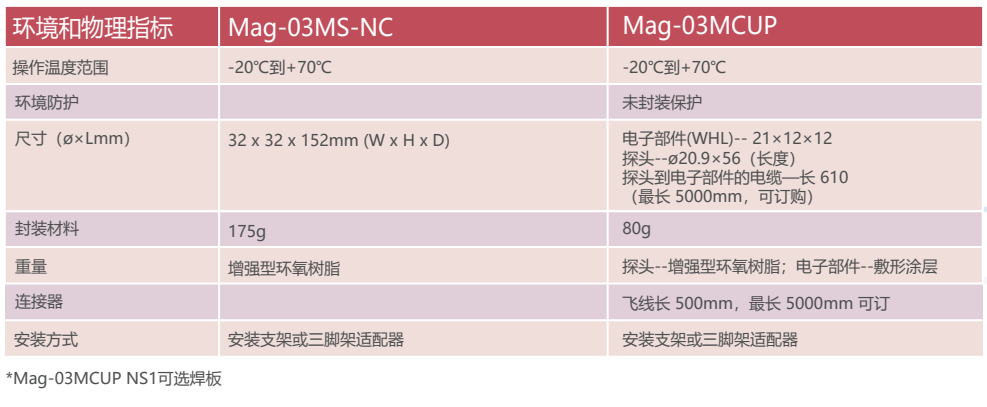

規格圖

Fluxgate three-component magnetometers for cost-effective ground, UAV and airborne magnetic surveys for industrial and academic geoscience applications and comparison with current industrial standards through case studies

https://www.sciencedirect.com/science/article/abs/pii/S2352380818300182?via%3Dihub

Magnetorelaxometry of magnetic nanoparticles with fluxgate magnetometers for the analysis of biological targets
https://www.sciencedirect.com/science/article/abs/pii/S0304885305002076

Simulation and measurement of ferromagnetic impurities in non-magnetic aeroengine turbine disks using fluxgate magnetometers
https://www.sciencedirect.com/science/article/pii/S2214657115000179

Magnetic mapping for the detection and characterization of UXO: Use of multi-sensor fluxgate 3-axis magnetometers and methods of interpretation
https://www.sciencedirect.com/science/article/pii/S0926985106000929

https://www.sciencedirect.com/science/article/pii/S0168169920311480
Aerial magnetic mapping with an unmanned aerial vehicle and a fluxgate magnetometer: a new method for rapid mapping and upscaling from the field to regional scale
https://onlinelibrary.wiley.com/doi/full/10.1111/1365-2478.12991

Anthropogenic electromagnetic fields (EMF) influence the behaviour of bottom-dwelling marine species https://www.nature.com/articles/s41598-020-60793-x
